Project SSTC2 - Small tabletop coil

I've been at work on this coil for a while now (taking it slow and careful in an effort to limit my release of magic blue smoke as much as possible).  This coil design I credit to Gao Guangyan and his SSTC2 (Small Tabletop Coil) project - which is presented as a complete tutorial on SSTC design, very detailed and well written.  For anyone wanting to build an Solid State Tesla Coil - I encourage you to check out his site (besides the great information he has great photos and video of his coils in action).

I began this project just after the Barnes and Noble Mini Maker Faire, after my first SSTC failed to perform at a second Maker Faire (I had issues not long before at the Chicago Southland Mini Maker Faire). These failures motivated me to make a more robust and easier to transport coil for demonstrations and education.

Current project goals include:

• solid modular design
• modules cleanly attach together (well marked and secure connections)
• modular components well secured within case (secure but still accessible for repair/trouble shooting)
• Indicators and/or test points for each module accessible for inspection/troubleshooting
• sturdy and clean looking case
• Grounded metal case (to shield from EMF generated by coil)
• Better grounding of  HV side with bypass caps on AC supply to prevent/reduce interference
• TVS Diodes across MOSFET's/IGBT's to clamp voltage at gates and prevent overloading gates

My first step, as it usually is with my Tesla Coils, is winding the secondary coil.  Not having and 34AWG magnet wire on hand I had to order it and wait for it to arrive (thankfully the company I order from is in Illinois, like me, and their order processing plus shipping time means I only need to wait 2-3 work days before it arrives).

Secondary PVC form cut down and winding just begun

Secondary after stopping to rest (slow going so far)

 This 34AWG wire is by far the thinnest wire I've used so far to wind a secondary (with the exception of a super mini 1.5inch secondary that I made but haven't used yet).  Winding at this point was very slow due to the wire spool rolling away as well as trying to keep winding's lined up (if they overlap I have to unwind and rewind them).

Finally keeping the wire spool stationary

 I finally did the smart thing and secured the wire spool, to speed up my coil winding.

Finished

 For such a small coil, it took a long time to wind (just about 3 hours - not including rest times).

Power and Control Electronics

Half Bridge

Half Bridge

Gate Drive Transformer

Power Supply for Low Voltage Side (5v and 12v)

Power Supply for Low Voltage Side (5v and 12v)

Bottom of etched pcb for Low Voltage Side PSU

 The pcb for the low voltage PSU - etching removed a portion of the trace on the left (bottom) side - repaired with solder bridge.

Controller Board (point to point soldering on perf board)

Feedback Transformer coil

I'm trying out Gao Guangyan's feedback (essentially using a step down transformer) instead of an external antenna.

My coil is not up and running yet (I'm taking my time and making certain that I test each portion before I connect sections together - I've fried enough silicon by rushing things so far).  I've gotten a bit further - so I'll be posting more updates to this project very soon.

Barnes and Noble Mini Maker Faire - Joliet, Illinois

Coming up this weekend at Barnes and Nobles Bookstores, nationwide, are Mini-Maker Faire's.   Friday, Saturday and Sunday (11/6-11/8)

While I thought I didn't make the cut since I didn't hear anything by Oct. 9th... I got the call last week asking if I could exhibit on Saturday and Sunday at the Barnes and Noble in Joliet, IL.  Over the weekend I found they also had an open spot for Friday.  So, SURPRISE!!!, I'll be there all weekend (I said yes to all days - of course, see below for the Meet the Maker exhibit schedule).

Friday 11/6 (Meet the Maker)

• 5pm
• 7pm

Saturday 11/7 (Meet the Maker)

• 1pm
• 5pm
• 7pm

Sunday 11/8  (Meet the Maker)

• 1pm
• 5pm

Below is a brief summary of my entry for the Barnes and Noble Mini Maker Faire:

My Project Entry was my "Musical Lightning": A tabletop musical Tesla Coil. The electrical arcs produced by the coil are modulated to enable them to produce musical notes without speakers!
The first Tesla Coil that I built, about 4 years ago, was motivated by wanting to show my daughter a "Lightning Machine". Ever since building that first coil I've wanted to build a musical Tesla Coil. After a number of failed attempts at building a solid state Tesla Coil I shelved the project with the plan to go back after I've learned a bit more.  Finally, after building a home brew CNC Machine and 3D Printer I decided to go back and try again - even though I didn't feel I really understood enough yet. I knew it would be a struggle but I registered for the Chicago Southland Maker Faire knowing the deadline would motivate me to learn what I needed to know to build it. After lots of research and experimentation, both of which continue, I learned even more than I hoped I would - about electronics, music theory, micro-controllers and programming.

I put off repairing my coil when I didn't hear anything by Oct 9th and switched to other projects - mainly my daughters Halloween costume (we like to MAKE our costumes in this house), a File Shelving project, and online coursework on micro-controllers, C programming and electronics.

After working hard for the week leading up to the faire and getting very little sleep - I made it for Saturday and Sunday (to many issues Friday - trying to get everything to work).

Here are a few pics of the faire:

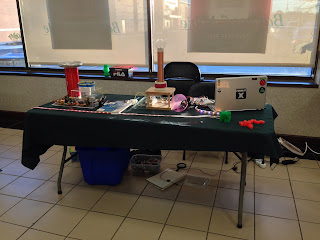

My Table

My exhibit was received well and I had the opportunity to talk to a lot of people in education, other Maker's, people in different tech fields, and my favorite - kids who love seeing tech stuff.



Lego's and Little Bits

 I missed getting pictures of other tables - forgot about taking them until Sunday near the end of the Faire.

There were a good number of last minute challenges that I faced for this Maker Faire:

• First was building the Geek Groups Audio Modulation board for SSTC - only to find after all my work that the software libraries needed to use it only worked on the Mapleleaf Board - based off Arduino but different pinout and library would need to be ported to the Arduino.
• Biggest was my exhibit coil failing 2 days before the Faire and I was unable to repair it.
• Old Faithful - my backup, battery operated, coil that always works - my Mazzilli Flyback driver died.  After waking up extra early on Friday I made a brand new Mazzilli driver on perf board with point to point wiring (took me a few hours) that died also.

Saturday night I again stayed up late and built a basic 555 based flyback driver and added audio modulation - just to have a nice demo piece - finally I had something that worked (and it continued to on Sunday).

For future Maker Faire's / exhibits I need to have better backup exhibits (less  fragile, in good solid enclosures).

This Maker Faire was great and I really hope Barnes and Noble continues their support of the movement.

Check out the "Barnes and Noble" Mini-Maker Faire's

November 6-8th (2015) every Barnes and Noble store in the United States will be hosting a Mini-Maker Faire.

Announcing: Barnes and Noble First Ever Mini-Maker Faire's

This link gives a better idea concerning how it's being organized as well as the days and time for different aspects of the event B&N Mini Maker Faire's

I applied (just under the wire,but before the deadline) to exhibit at local Barnes and Noble locations (Joliet, Naperville and Bolingbrook locations).  The confirmation for my application stated that I would hear, if I was accepted, by the end of the day on October 9.  So..., it seems that I didn't make the cut.  I'm quite anxious to see who is getting the chance to exhibit their projects to the public, any chance to meet other local Maker's is a great opportunity that I look forward to (I would love to find other people to collaborate and exchange ideas with).

My main goal is to encourage others to engage in Making - to discover and learn new things, apply what they already know in new ways, and of course to ask questions and pursue solutions.

Please, encourage everyone you know to come out and support "Making" next month (Nov. 6-8th) at your local Barnes and Noble Bookstore.

From what I can tell from the B&N link above, this is the layout:

The Featured and Sponsored Brands (I included direct links to their websites instead of just to the products that B&N are selling - so you can see what each company is all about) .

Featured brands:

• Protocol New York (http://protocolny.com/) - drones, gadgets, fitness
• Spin Master Spin Master Meccano Meccanoid G15 (http://www.meccano.com/meccanoid-about )
• Ozobot (http://www.ozobot.com/ )
• Sphero SPRK (http://www.sphero.com/sphero-sprk)
• Lego (www.lego.com ) - not clear if they are featuring building sets, robotics or both
• XYZPrinting (http://us.xyzprinting.com/) low cost 3D printer
• Snap Circuits (http://www.snapcircuits.net/ )
• Think Fun (http://www.thinkfun.com/ ) STEM education puzzles and games
• littleBits Electronics (http://littlebits.cc/ ) great electronics learning/teaching materials
• The Creativity Hub (http://www.creativityhub.com/ )– Extraordinaires Design Studio Pro (http://www.extraordinaires.com/ )
• Raspberry Pi (https://www.raspberrypi.org/ ) - looks like they are featuring Maker Media's Delux Kit
• Make Magazine (http://makezine.com/ ) (of course)

Sponsored Brands:

• Toby Rich (http://www.tobyrich.com/ ) smartphone gadgets
• Circuit Scribe (http://www.circuitscribe.com/ ) conductive ink
• Light Up (https://www.lightup.io/ )
• Makey Makey (http://makeymakey.com/ )
• Lomography (http://www.lomography.com/ ) photographic media

It looks like The B&N Mini Maker Faire's are being divided up (by times) into the following categories (or areas):

• Make Workspace
  • Product demos, tech-education. So, expect to see cool new tech and tech education products from the sponsored and featured brands named above.
• Meet the Maker
  • “Come meet the leaders of the Maker movement! These are the people changing the way we learn, ideate, design, create, and build the future. They’ll be visiting your local Barnes & Noble store to talk about their process, their creations, and their vision.” - it seems more a talk/lecture than an exhibit with hands on explanations.
    • I believe this is the area I applied for in my application to Barnes and Noble and Make. Informed that if a local B&N store could use me that I'd be contacted by 10/9/15.

• Make and Collaborate
  • “Get hands-on experience in design, handcrafting, and construction in the spirit of collaboration and teamwork.”
    •  This looks like the area that could be the most fun and engaging to kids!

A breakdown of the days and times (compiled from the B&N website) is summarized below:

Friday	(11/6)
	03:00 PM	Make Workspace
	04:00 PM	Make and Collaborate
	05:00 PM	Make and Collaborate / Meet the Maker
	06:00 PM	Make Workspace
	07:00 PM	Meet the Maker
Saturday	(11/7)
	11:00 AM	Make Workspace
	12:00 PM	Make and Collaborate
	01:00 PM	Meet the Maker
	03:00 PM	Make Workspace
	04:00 PM	Make and Collaborate
	05:00 PM	Make and Collaborate / Meet the Maker
	06:00 PM	Make Workspace
	07:00 PM	Meet the Maker
Sunday	(11/8)
	11:00 AM	Make Workspace
	12:00 PM	Make and Collaborate
	01:00 PM	Meet the Maker
	03:00 PM	Make Workspace
	04:00 PM	Make and Collaborate
	05:00 PM	Meet the Maker
